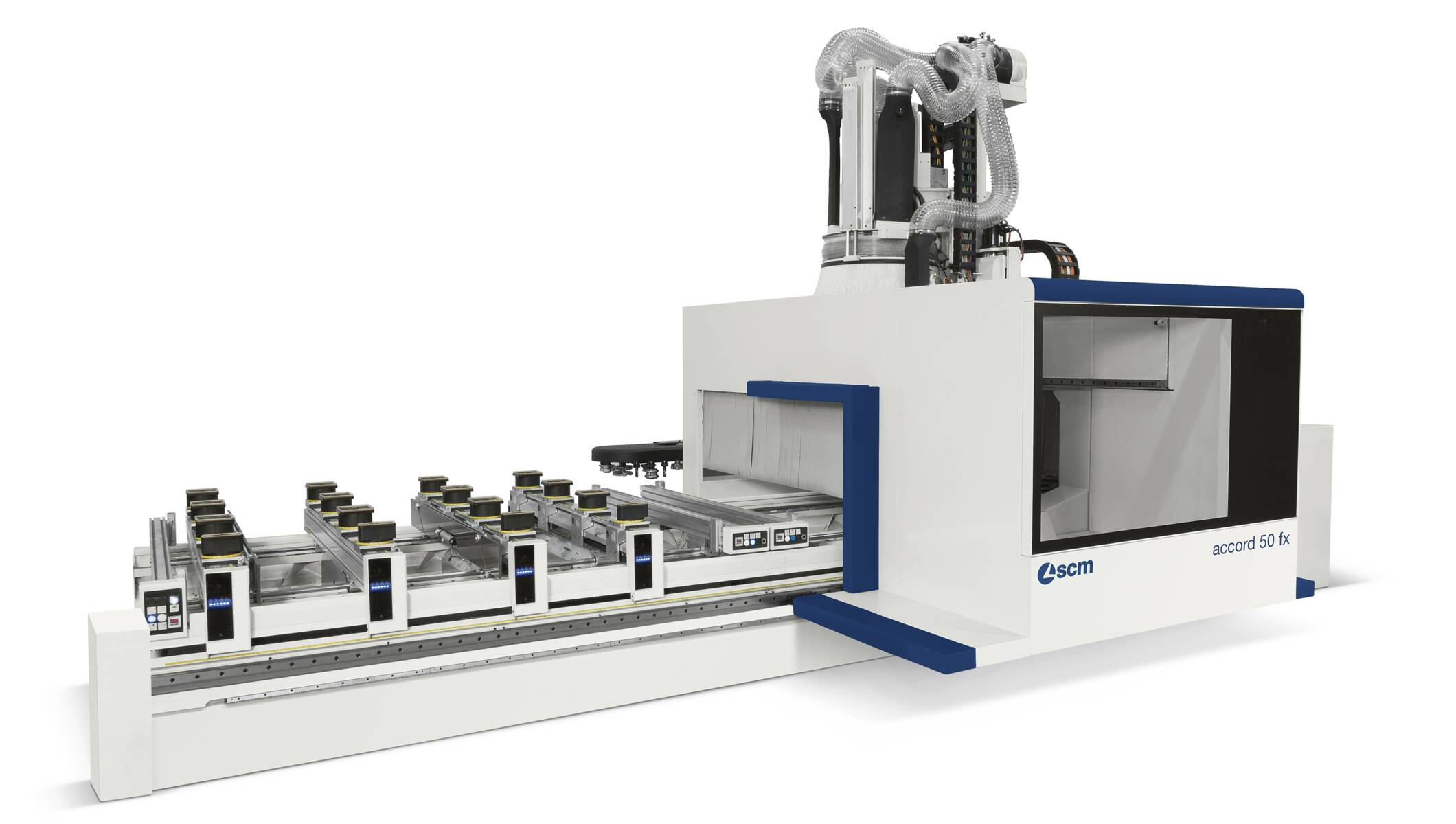

5-axis CNC machining centre with mobile gantry structure, designed for manufacturing complex-shaped and large-sized objects.
It meets the needs of many sectors, from design elements in wood to special applications.
5-axis CNC machining centre with mobile gantry structure, designed for manufacturing complex-shaped and large-sized objects.
It meets the needs of many sectors, from design elements in wood to special applications.

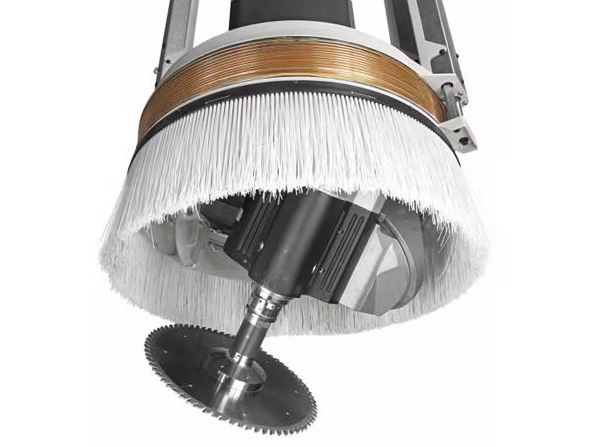

The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood. The ideal solution for windows, doors and stairs.

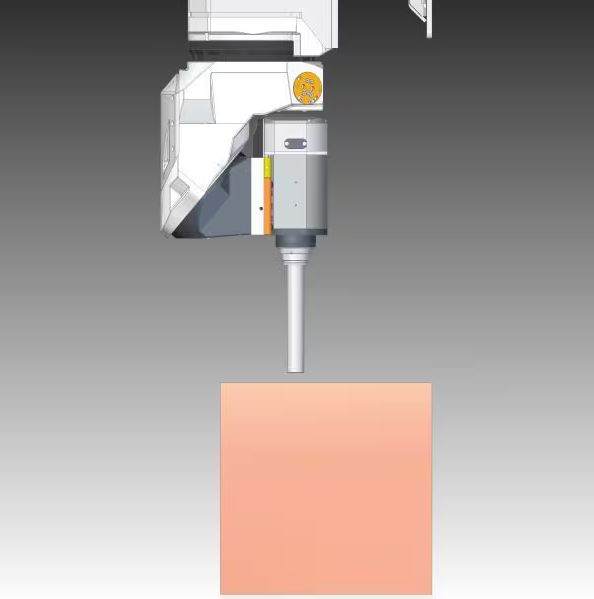

The architecture of the machine is designed to perform routing and drilling of work pieces up to 500 mm in height.

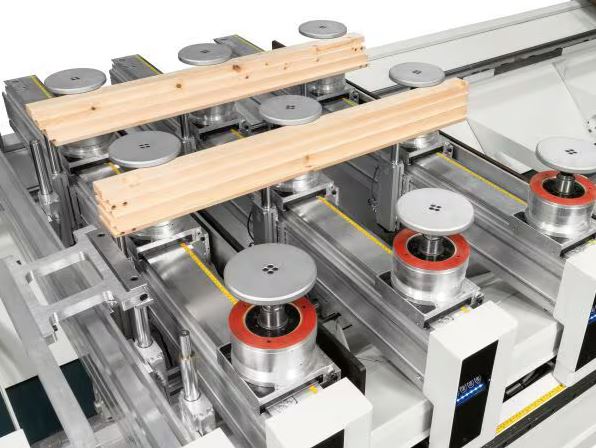

The MATIC bars worktable with direct transmission system and independent drive units, assures the complete set-up in seconds. Simple and quick replacement of clamps and suction cups through the exclusive rapid locking device.
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.
| accord 50 fx | ||
| Working areas | ||
| X-Y-Z axes dimensions | mm | 3680x1680x500 5020x1680x500 6360x1680x500 3680x1905x500 5020x1905x500 6360x1905x500 |
| Axes | ||
| X-Y-Z axes max. speed | m/min | 95-80-30 |
| Machining head | ||
| 5 axes electrospindle motor power (max.) | kW | 17 |
| 5 axes electrospindle rotation speed (max.) | rpm | 24000 |
