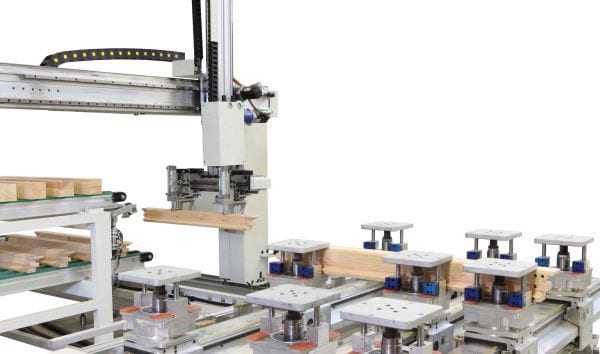

Flexible work cell for the production of window and door frames, fitted with automatic loading and unloading. It can perform batch or unit production; the work cycle is never interrupted and always at highest feed speed.
Maximum flexibility to process special window and door frames or other types of elements as the worktable can be accessed also for manual loading and unloading.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec non velit ut odio mollis condimentum. Suspendisse ultrices ligula ut dolor sagittis vestibulum. Nullam consequat a sem sed rutrum. Morbi finibus orci eget ante pharetra, a accumsan mauris blandit. Phasellus ac convallis mi.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec non velit ut odio mollis condimentum. Suspendisse ultrices ligula ut dolor sagittis vestibulum. Nullam consequat a sem sed rutrum. Morbi finibus orci eget ante pharetra, a accumsan mauris blandit. Phasellus ac convallis mi.

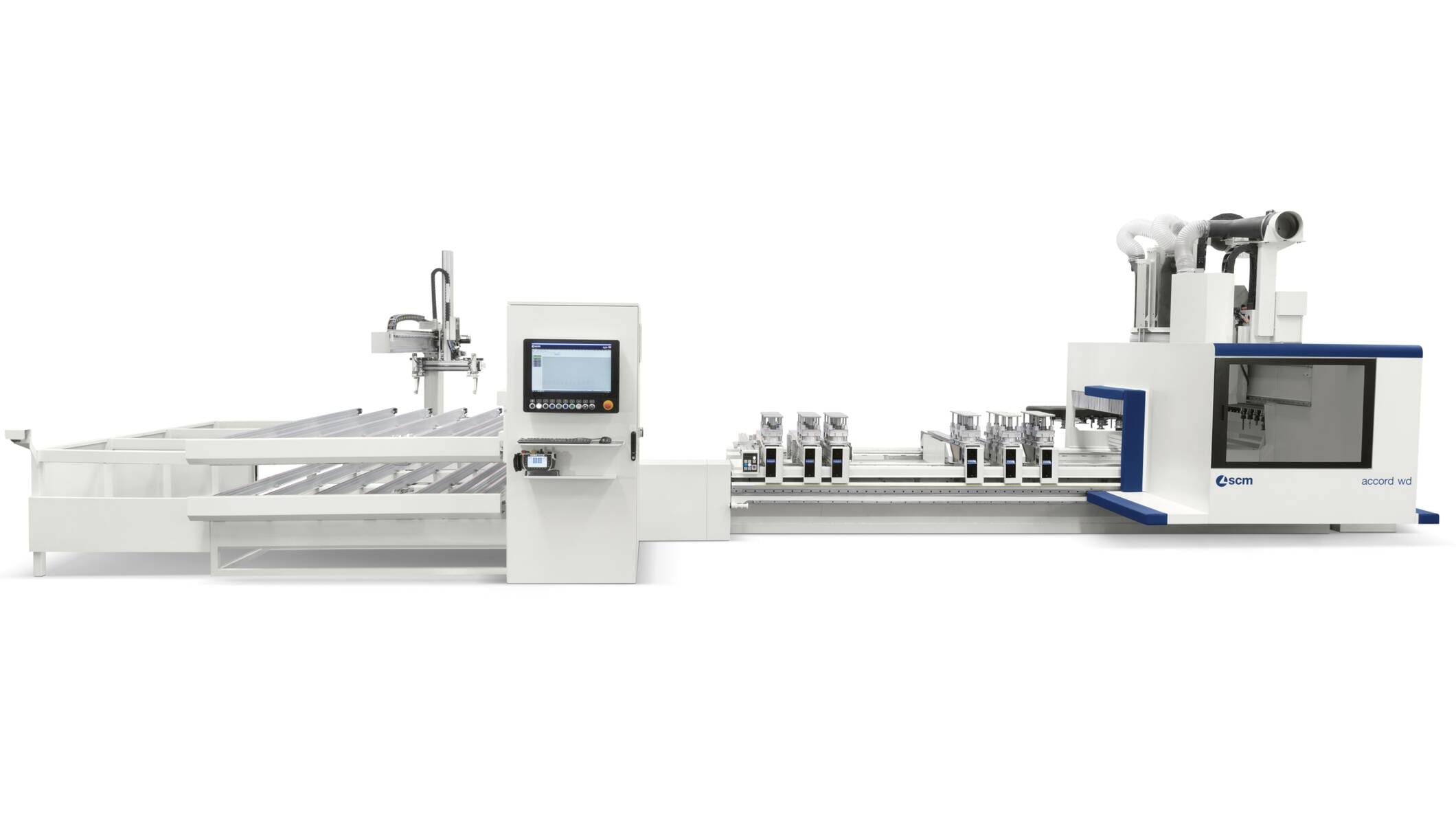

Flexible work cell for the production of window and door frames, fitted with automatic loading and unloading.
The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood, the ideal solution for doors and windows.
The MATIC bars worktable with direct transmission system and independent drive units, assures the complete set-up in seconds.
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.
| accord wd | ||
| Working areas | ||
| X-Y-Z axes dimensions | mm | 3680x1905x350 6360x1905x350 |
| Axes | ||
| X-Y-Z axes max. speed | m/min | 90-90-30 |
| Machining head | ||
| 5 axes electrospindle motor power (max.) | kW | 13 |
| 5 axes electrospindle rotation speed (max.) | rpm | 18000 |
| Tool stores | ||
| Tool store on machining head | positions | 12 |
| Rear tool store | positions | 48 |
| Side tool store | positions | 12 |
